Product Review
Kindly Reminder \(^o^)/~
1. Compatible battery: F550 F970 F750.
2. Compatible Camera: BMPCC/5D2/5D3/7D/60D/550D/D7000/D800/D90/A7S/FS7/GH4.
3. The image on screen would turn into black and white if the peaking focus assist is applied.
4. When this monitor displays in full screen, the image would exceed the bounds to prevent distortion.
5. Please turn the volume down before connecting with camera to record in case of sound noise or sound distortion.
* 1280x800 High resolution
* Wide view angle IPS panel
* 400cd/m2 backlight
* 800:1 color contrast ratio
* Peaking Focus Assist
* Camera 5D II Mode
* Check Field(Red, Green, Blue, Mono)
* Image Flip(U/D, L/R)
* Screen Marker(80%, 85%, 90%, 93%, 96%, 2.35:1)
* Centre Marker
* 4:3 & 16:9 image adjustable
* Pixel-to-Pixel
* Image Freeze Specification
Resolution: 1280x800
Dot pitch: 0.11775(H) x 0.11775(V)
Aspect ratio: 16:10
Brightness: 400cd/m2
Contrast: 800:1
Backlight: LED
Response time: 25ms
Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
Inputs: Video/Audio/HDMI
Outputs: Wire remote OSD controller, Built-in Speaker, 3.5mm Audio
HDMI Support Mode
480i / 576i / 480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps)
Power Consumption: 5w
Input Voltage: 7.4V-35V Package Content

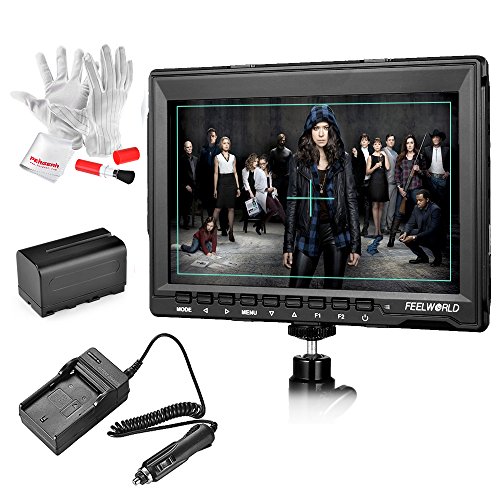

1x FW759 Monitor
1x Mini HDMI Cable
1x Micro HDMI Cable
1x Battery Mount(Installed Already)
1x Bracket
1x User Manual
1x Sunshade
1x Pergear Clean Kit
1* 6600mAh Battery Pack
1* Battery Charger
