Supports NTSC Video system.
Image Sensor: 1/3 "OV Color CCD PC3030
Effective Pixels: NTSC 728(H) x 492(V)
Horizontal Resolution: 480 TVL
Minimum Illumination: 1.0Lux F = 1.2(0Lux with IR on)
Night Vis...

Buy Now From Amazon

Product Review

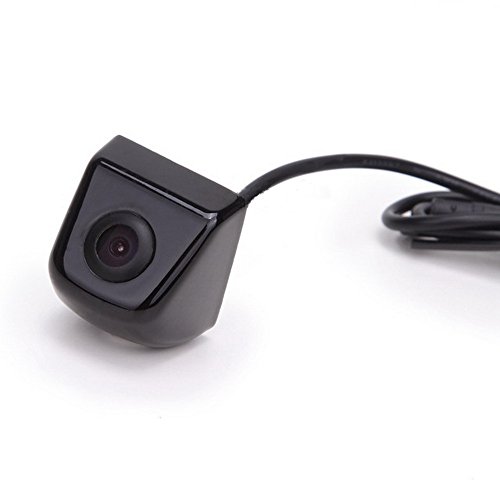

Supports NTSC Video system.
Image Sensor: 1/3 "OV Color CCD PC3030
Effective Pixels: NTSC 728(H) x 492(V)
Horizontal Resolution: 480 TVL
Minimum Illumination: 1.0Lux F = 1.2(0Lux with IR on)
Night Vision: 5-10meters
Lens: 1.8mm
Diagonal Viewing Angle: 120 degree (left to right) 170 degree (up and down)
Synchronization: Internal synchronization
Signal to noise ratio: >48db
Electronic Shutter: Auto
Video Output: RCA interface, 1.0Vp-p, 75Ohm
White Balance: Auto
Backlight Compensation: Auto
Power: DC 12V
Current Consumption: 50-60mA, Max 130mA with IR on
Operating Temperature: -20℃ ~ +60℃, RH95% Max
Storage Temperature: -30℃ ~ +80℃, RH95% Max
Video cable is RCA connector

  • Small like a coin's size, 170 degree viewing can help to check the blind area, which extremely improve the safety when you are reversing the car.
  • Waterproof rating up to IP68, you don't need to worry about it on rainy days.
  • Easy to install it, you can check the installation picture or contact us by amazon message directly
  • High-performance materials make this camera more durable, this isn't like the other cheap products which only use just a few uses.
  • This backup camera help you get a more enjoyable and safety experience when you are driving
