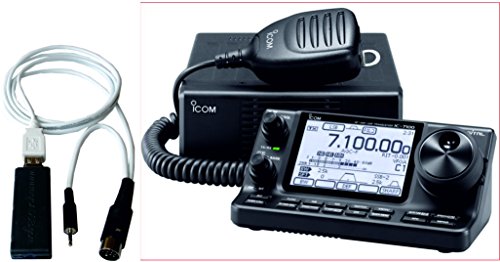

GPS receiver for Icom IC-7100 or IC-9100. Ham, Amateur Radio.GPS7100-v.2 ...........................................Overview: The GPS7100 receiver is designed specifically for the IC-7100 (also work with IC-9100). You are able to enjoy a brand new experience in driving with IC-7100 /IC-9100 transceiver via GPS Receiver. It can support RS-232 on 9600b/s. ...........................................................Main Features: ★ Built-in MTK Low power consumption GNSS GPS/L86 (NEW for the v.2 : Multi GNSS engine for GPS, GLONASS and QZSS) chipset. ★ 99 parallel searching, 33 tracking channels. ★ Superior sensitivity up to: -Acquisition -148dBm -Re-acquisition -160dBm -Tracking -165dBm ★ Built-in WAAS/EGNOS/MSAS/GAGAN Demodulator without any additional hardware. ★ Low power consumption ~22mA. ★ Cold Start 15s typ.@-130dBm ★ Warm Start 5s typ.@-130dBm ★Hot Start 1s typ. @-130dB ★Horizontal Position Accuracy (Autonomous) <2.5m CEP@-130dBm. ★ The Protocols Module Supports NMEA Output, ASCII, 0183, 3.01 ★Temperature Range Normal operation: -40°C ~ +85°C ★ Built in patch antenna. .....................................Package Contents: .....GPS receiver GPS7100-v.2 x 1 .....Cable for connection to Icom IC-7100 / IC-9100 x 1 ................................................NOTE: This is not a USB dongle for computer. Please, be aware of NOT connecting it directly to the USB interface of computer!!! ......................................................................................SHIPPING: AIRMAIL not insured post service with recommendation, parcel released upon signature, with tracking number. Usually needs 2 weeks to arrive to you, sometimes faster (1 week), sometimes slower (3-5 weeks)
