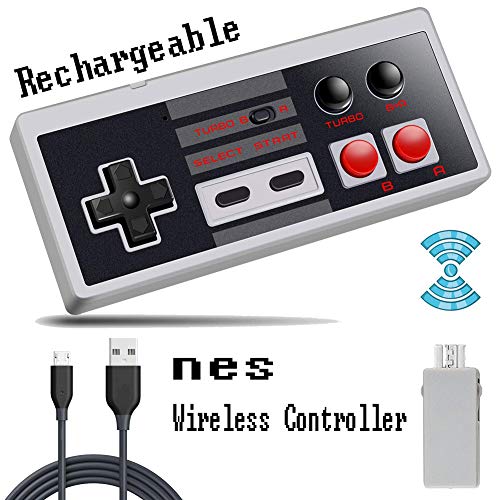

Nintendo NES Mini Classic Edition Red and White nes classic wireless controller/ mini nes classic controller

1.This is a wireless controller dedicated to  nintendo classic NES consoles. With 2.4GHz RF wireless connection technology, the remote control can be up to 5 meters. Plug and play, no need to wait for installation,Easy to operate.

2. The  nes classic wireless controller wireless controller has TURBO + A and TURBO + B button functions, which makes it easier to increase the fun of the game.

3. The  nes classic wireless controller has an LED indicating the operating status.

two. Instructions for use

1. Turn on the power of the wireless controller and insert the receiver into the handle interface of the host. The receiver's LED flashes (search for a signal); the  nes classic wireless controller will automatically connect. The LED lights up when connected. In other words, you can operate the game.

2. The wireless controller has a sleep function to reduce battery power consumption and extend battery life:

Entering sleep state for 30 seconds without connection;

Sleep 5 minutes when the connection status handle is not running;

Press the START button on the handle while sleeping to wake up.

3. Press the SELECT and START buttons of the wireless controller at the same time to return to the main menu without pressing the RESET button on the main unit.

4. When the battery voltage is too low (less than 2.1V), the handle will be disconnected and the battery replaced.

5. Remove the battery when not in use for a long time.

Third, nes classic wireless controller electrical specifications

Wireless controller Working voltage: DC3V (two AAA batteries)

Wireless controller Working current:

Search status: <25mA

Working status: <10mA

Sleep status: <15uA
