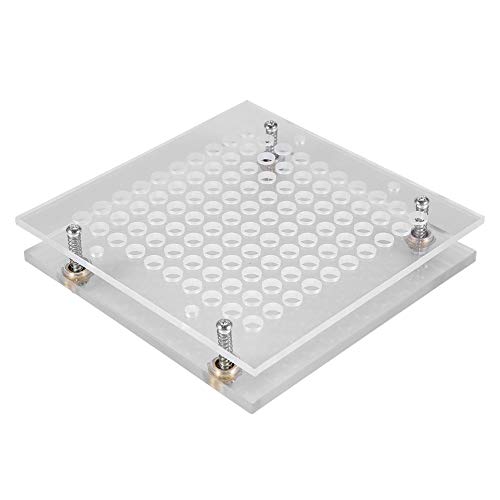

Specifications:
Material: Acrylic
Hole Quantity: 100 Holes
Size: 00#, 0#, 1#, 2#, 5#(Optional)
Capsule Percent of Pass: Greater Than Or Equal To 99.8%
Color: As Pictures Shown
Quantity: 1 ...

Buy Now From Amazon

Product Review

Specifications:
Material: Acrylic
Hole Quantity: 100 Holes
Size: 00#, 0#, 1#, 2#, 5#(Optional)
Capsule Percent of Pass: Greater Than Or Equal To 99.8%
Color: As Pictures Shown
Quantity: 1 x Set of 6Pcs Capsule Plates + 1Pc Handle
Type: Capsule Filler
Function: Production For Small-amount Homemade Capsule

How To Use:
1. The capsule filling machine includes 6 parts: body plate, alignment plate, cap plate, middle plate, powder spreader, powder pressing plate.
2. The capsule includes 2 parts: the capsule body, (the long one, filled with powder), the capsule cap (the short one, no powder)
3. Take the cap plate. Place it on a clean, dry surface.
4. Place the alignment plate on top of the cap plate, fix it correctly in place.
5. Pour capsule caps into the alignment plate, using a circular motion; gently shake the caps into the holes. While doing this, cover the gap in the wall of the alignment plate with one hand to avoid spilling the tops.
6. When the holes are filled with the caps, pour out the excess caps.
7. Now take the body plate. Fix the alignment plate to the body plate.
8. Pour bottoms into the alignment plate and shake as before to fill the holes. Pour off excess bottoms
9. Pour a scoop of powder filler onto the body plate and use the spreader to fill the bottoms.
10. Take the filled cap plate and place the middle plate on top .
11. Turn the cap plate or middle plate over and fix to the body plate.
12. Using hands and equal pressure press down once to fit both parts of the capsule together.

Package includes:
1 x Body Plate
1 x Alignment Plate
1 x Cap Plate
1 x Middle Plate
1 x Powder Spreader
1 x Powder Pressing Plate
1 x Handle



  • Made of environmental Acrylic material that is clean, safe, durable and with good toughness
  • Adopting the newest technology of the capsule filling machine, combines the automatic alignment features, which provides fast alignment of capsules
  • Unique design offers very little wastage,any excess powder is easily poured back into the original supplement's packaging
  • Complete accessories included, which can be used simply and quickly by users, so that can save time.Suitable the process and production for small-amount homemade capsule, like for small factory, pharmacy, sample room, lab, department of pharmaceutical preparation in hospital, family and so on
  • Note: 1. Not include anything except capsule filler in the pictures. 2. Please do not disinfect it with boiled water in case of deformation. 3. Please do not expose it under the sun or use a blower to dry it after wash.
